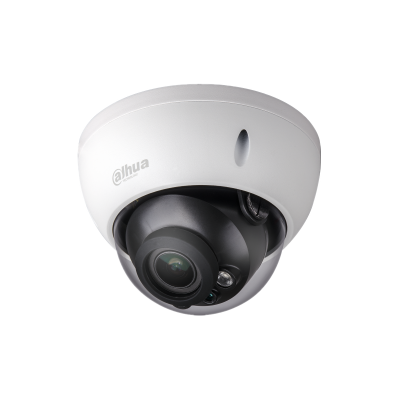

CAMÉRA DE VIDÉOSURVEILLANCE DÔME BULLE IP POE 4MP

CAMÉRA DE VIDÉOSURVEILLANCE DÔME BULLE IP POE 4MP

  • Résolution 4MP
  • Capteur CMOS 1/3″ 4MP progressif
  • H.265 / H.264
  • 20fps@4M(2688×1520)&25/30fps@3M(2304×1296)
  • WDR(120dB), Jour/Nuit(ICR), 3DNR, AWB, AGC, BLC
  • Surveillance réseau multiple : web, CMS (DSS/PSS) et DMSS
  • Emplacement de carte Micro SD, jusqu’à 128 Go
  • Vari-focale motorisée 2.7~13.5mm
  • Vision IR 30m
  • IP67, IK10, PoE
Catégories : Cameras, Non classé, Vidéosurveillance
Share:
FacebookTwitterPinterestEmail
  • Description
Camera
Image Sensor 1/3” 4Megapixel progressive CMOS
Effective Pixels 2688(H) x1520(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.03Lux/F1.4( Color,1/3s,30IRE)

0.3Lux/F1.4( Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Motorized(-ZS),Manual(-VFS)
Mount Type Board-in
Focal Length 2.7mm~13.5mm
Max. Aperture F1.4
Angle of View H:104°~28°, V:55°~16°
Focus Control Motorized(-ZS),Manual(-VFS)
Close Focus Distance 0.2m
DORI Distance Lens Detect Observe Recognize Identify
W 64m(210ft) 26m(85ft) 13m(43ft) 6m(20ft)
T 222m(728ft) 89m(292ft) 44m(144ft) 22m(72ft)
PTZ
Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
Intelligence
Event Trigger Motion detection, Video tampering,Scene changing,Network disconnection,IP address conflict,Illegal acess,Storage anomaly
IVS Tripwire, Intrusion
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/h.265+
Streaming Capability 2 Streams
Resolution (2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)CIF(352×288/352×240)
Frame Rate Main Stream: 4M (1 ~ 20fps)/3M(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 20/25fps)
Bit Rate Control CBR/VBR
Bit Rate H.265: 12K ~ 8448Kbps

H.264: 32K ~ 10240Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPS;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;Qos;UPnP;NTP;Bonjour;IEEE802.1x;Multicast;ICMP;IGMP;TLS;RTCP
Interoperability ONVIF Profile S&G,API
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS

Local PC for instant recording

Micro SD Card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE (IEEE802.3af)(Class 0)
Power Consumption <9W(-ZS), <7W(-VFS)
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions φ122mm×88.9mm(4.80 »x3.50 »)
Net Weight 0.4Kg (0.88lb)
Gross Weight 0.54Kg(1.19lb)
